Pumps
Rotary Diaphragm or Peristaltic Pump
Two great options for mixing, dosing, and dispensing your salt water and acid solutions.
Pump Details
Peristaltic (top) and
RD1 Rotary Diaphragm (bottom)
Flow rates for a peristaltic pump are dependent on your tube size and speed of the motor. Rotary Diaphragms are somewhat similar in that regard, but you should contact us with your desired flow rate and we can adjust the pump to fit your spec.
| Ø Hose | 50 RPM | 83 RPM | 116 RPM | 135 RPM | 160 RPM | 200 RPM | 300 RPM |
|---|---|---|---|---|---|---|---|
| 8X12 | 360 ml/min | 600 ml/min | 780 ml/min | 930 ml/min | 1080 ml/min | 1260 ml/min | 2280 ml/min |
| RD Series | Max Flow | Lift / Draw | Max Pressure | Connector |
|---|---|---|---|---|
| Spec Sheet | 0.14 - 5 L/min | 5-8 meters | 0.7 Bar, 2 Bar | 8mm & 15mm Straight Connector |

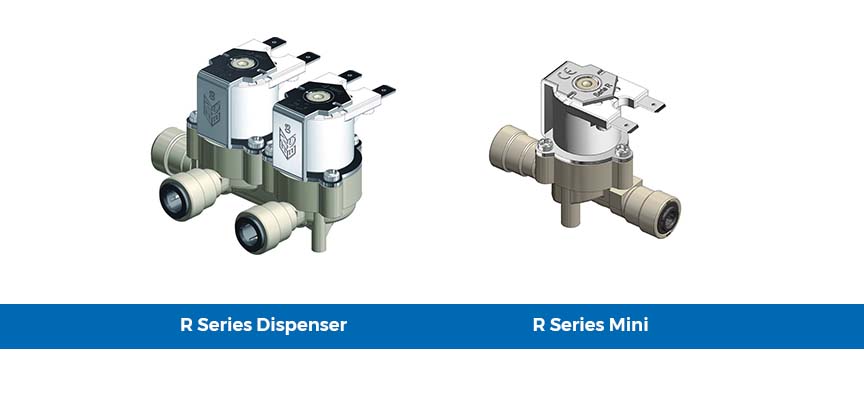

Solenoid Control Valves
RPE has Endless Combinations
Solenoid control for disinfectiong solutions in endless combinations

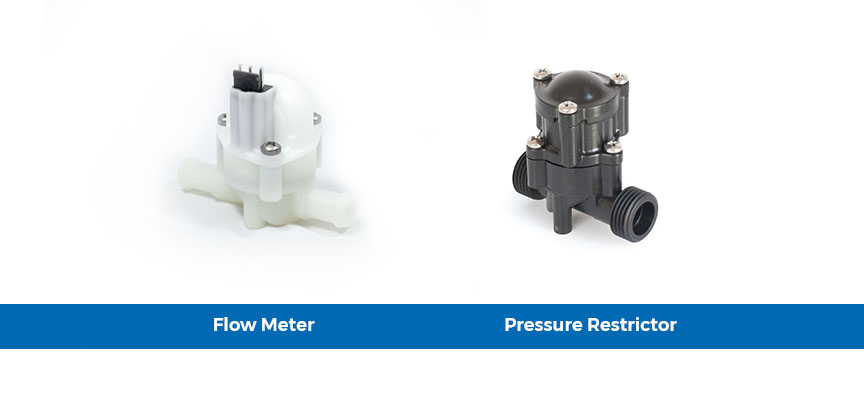

Fluid Measurement & Control
Flow Meters & Pressure Restrictors
Managing your disinfectant fluid is critical for functionality. Ensure your device is delivering the proper amount of fluid with a RPE Flow Meter.
Impact control further by introducing fluids at the proper pressure with a pressure restrictor

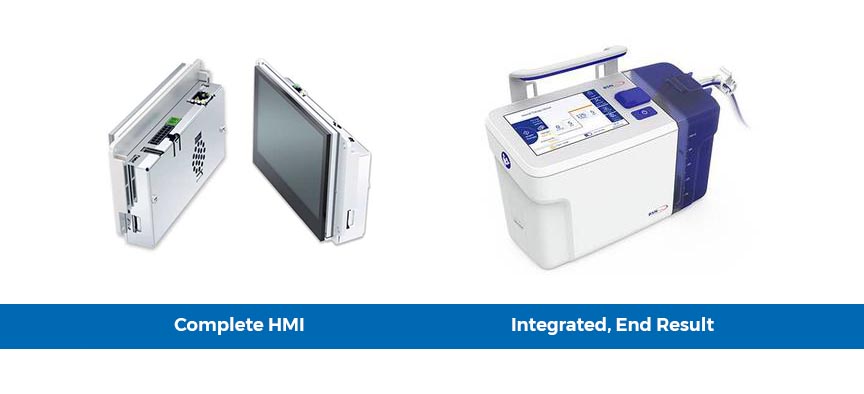

Touch Screen Display
User Operation of your Cleaning Machine
Touchscreens provide a familiar interface to your machine's operator, Garz & Fricke can provide one that works with gloves, runs off a battery, and has customized low-power options.
